[Restock] Axol Studio Yeti Mechanical Keyboard Kit

$91.99

Case

PCB

Plate

Clear

SKU: axol-studio-6568737112203 Categories: DIY KIT, Extra In-stock, Group Buy, Keyboard Category, Restock, Shop, Yeti Tags: 60% DIY KIT, DIY KIT, Group Buy extra

Safe Payments, the Smart Choice
Hassle-Free Payments
Nature-friendly materials, for a better planet.
The Quality Choice for Smart Shoppers

Axol Studio Yeti Mechanical Keyboard Kit

Update

Selling extra in stock (2022-09-21)
Ready to ship in mid-September (2022-09-09)
The factory is starting to ship the items, waiting for QC (2022-08-03)
During the inspection, we found out that there are some stains inside the PC material which can not be wiped off. Unfortunately, we have to reject this and force the manufacturer to reproduce it again. (2022-05-30)
The factory will ship out the case at the end of May (2022-05-12)
The aluminum case has been produced and the PC case is being processed （2022-04-11）
Due to the epidemic, CNC and oxidation factories have been suspended for 2 weeks, and production will continue to be delayed （2022-03-10）
The Production delayed （2021-12-07）
In Production（2021-09-07）
Estimated shipping date: Q3 2022
Group buy date: July 15th- August 15th, 2021

Specs

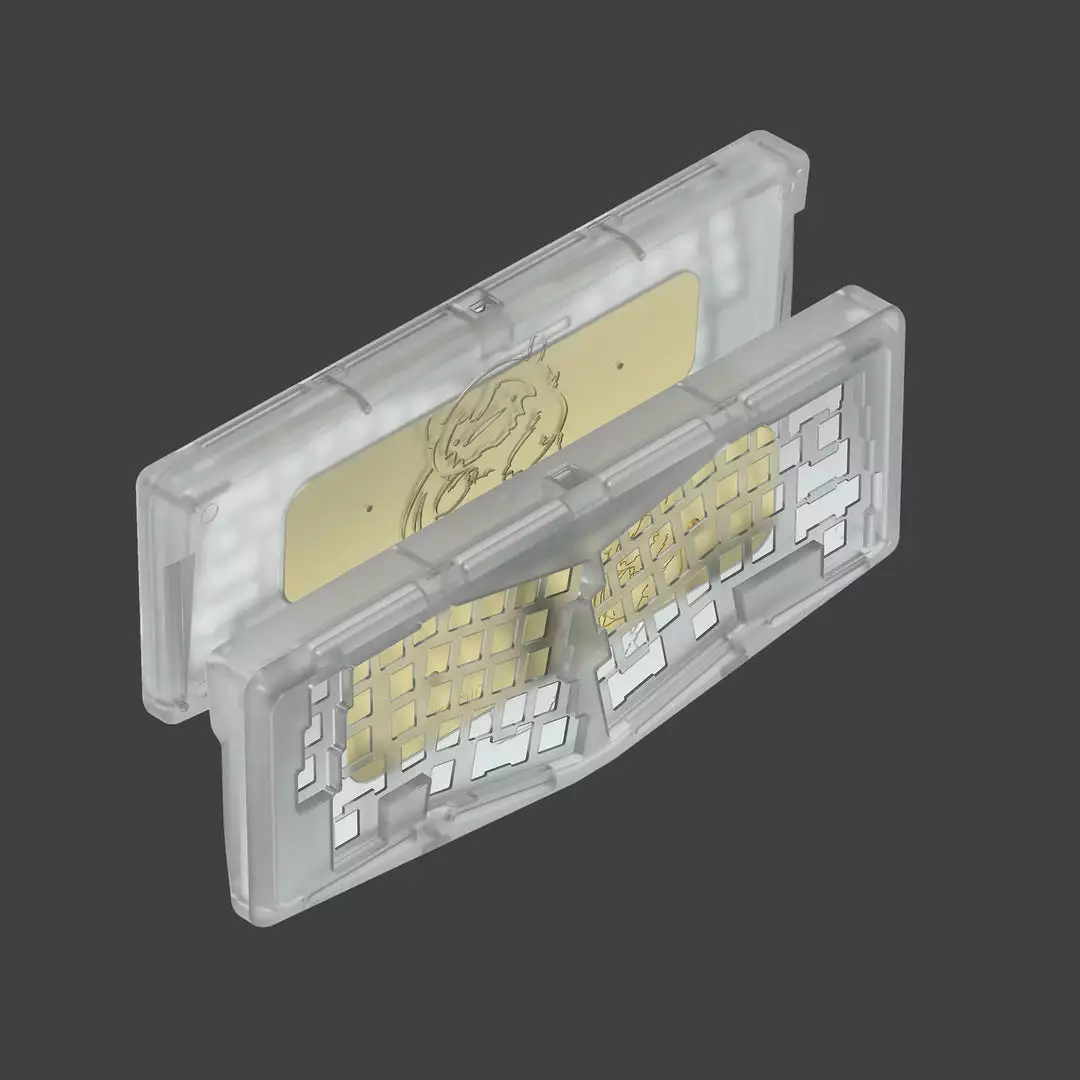

Aluminum or PC case
Gasket mounted
6 Degree typing angle
QMK and VIA support
JST wired PCB: Solder and hot-swap versions avaiable; Hotswap version has per key RGB without RGB underglow. Soldered version has no RGB
JST Daughterboard (Unified Daughterboard Spec, USB C)
Alu case with weight bar is 3kg, PC case with weight bar is 1.5kg, the PC case without the weight bar is 778 g, the weight bar is 745g

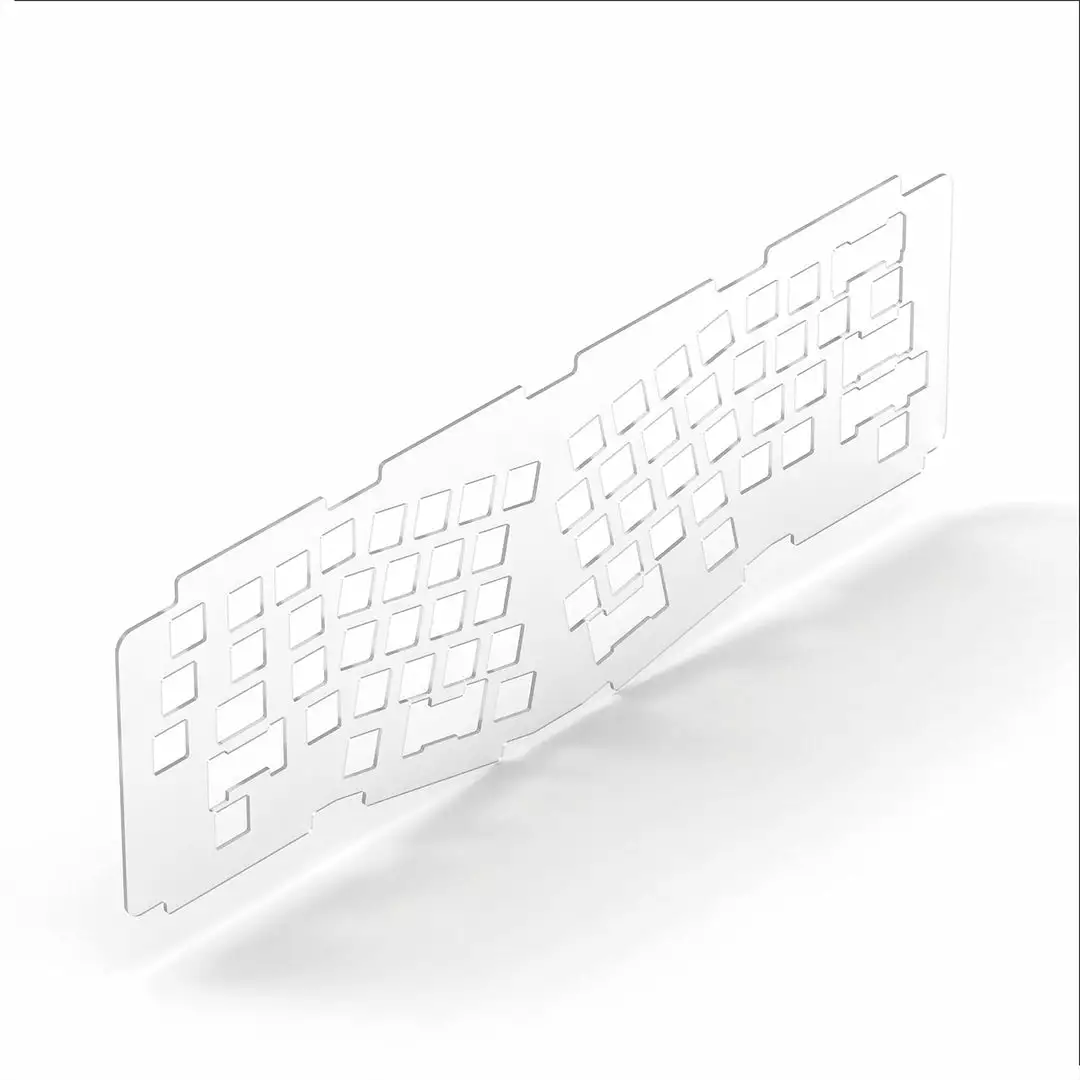

Multiple plate options Brass, Half Brass, Alu, Half Alu, PC
Brass Weight bar
Designed by Snomo

Colors

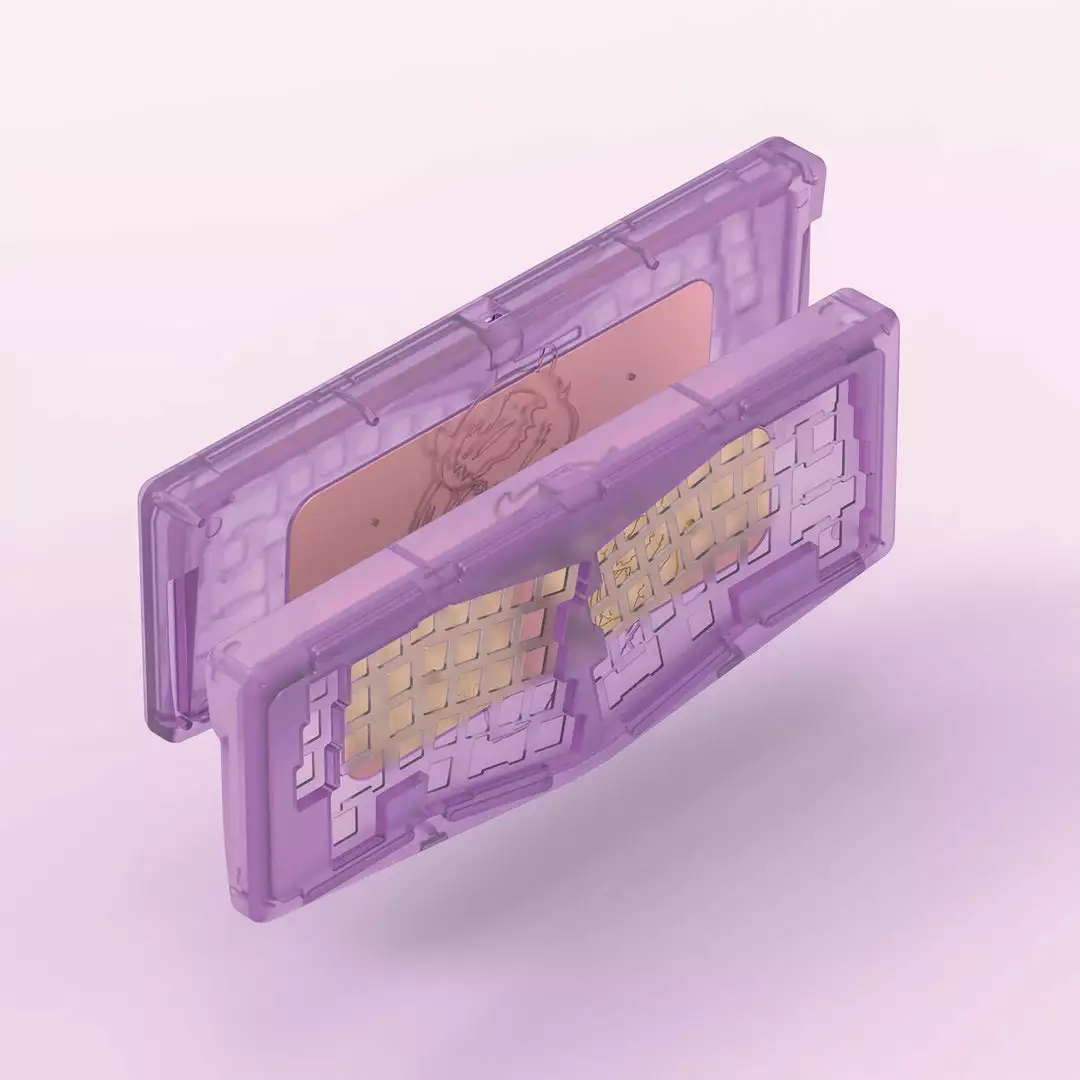

Amethyst (Dyed purple polycarbonate)
Sapphire (Dyed blue polycarbonate)

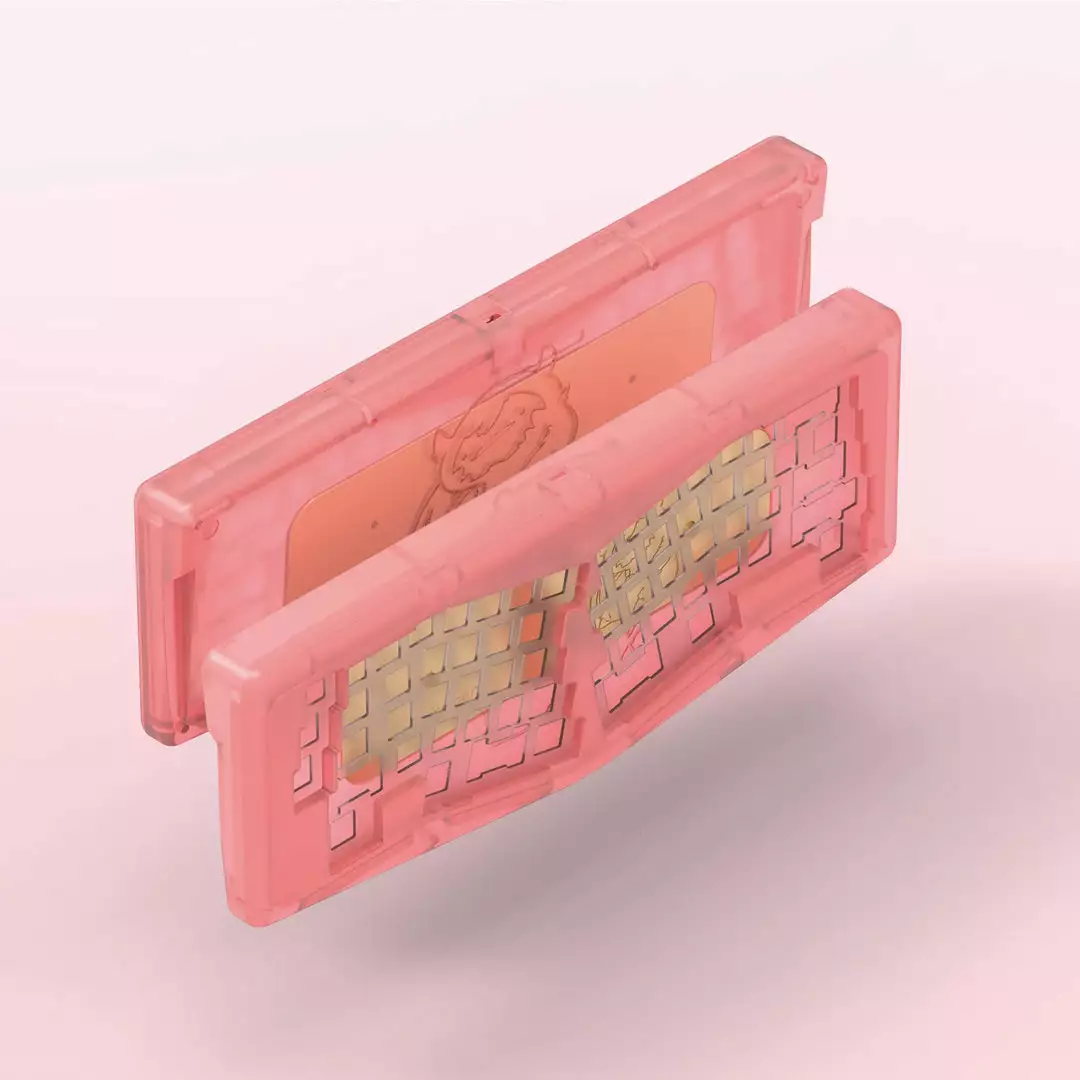

Morganite (Dyed pink polycarbonate)
Polycarbonate Clear
E-White
E-Black

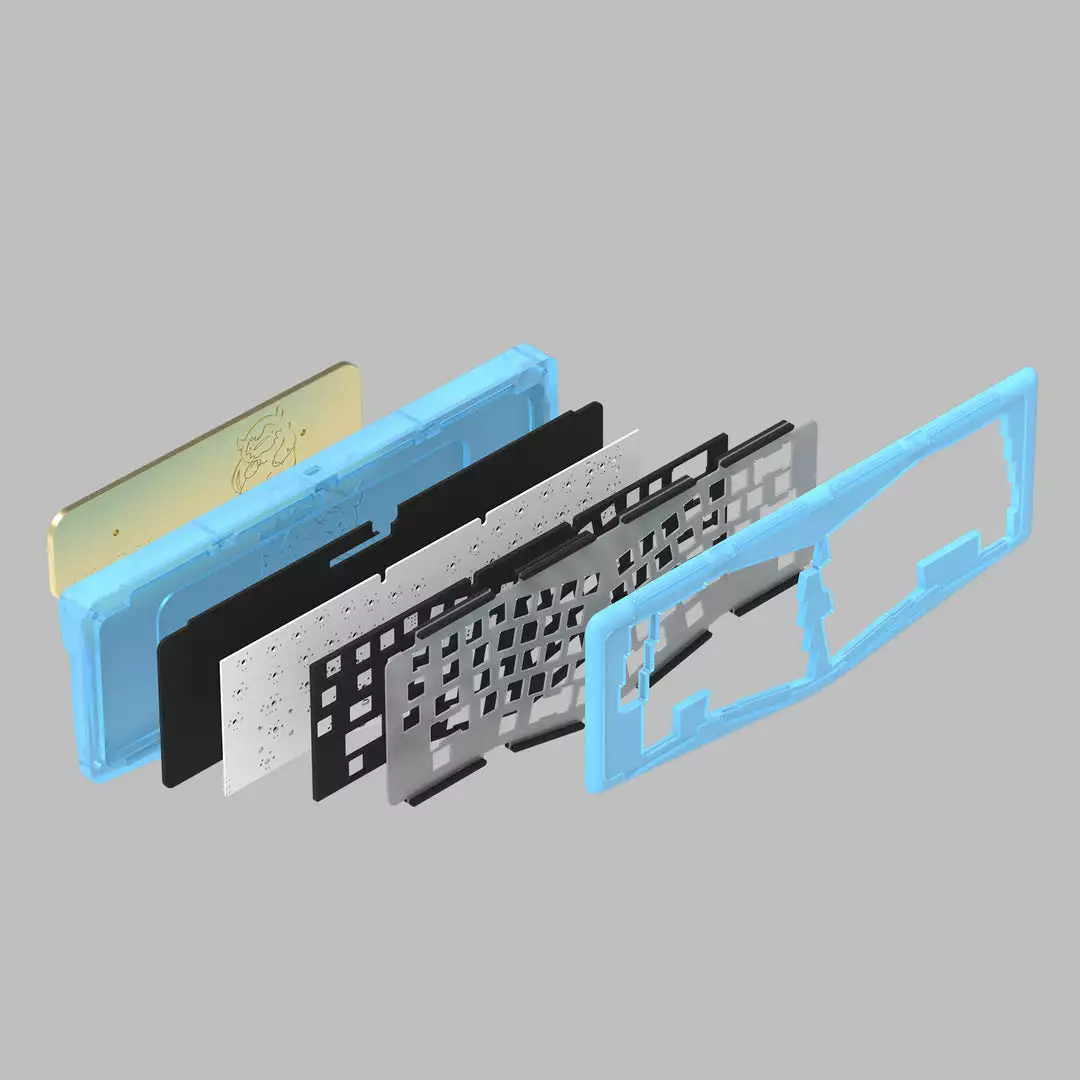

Includes

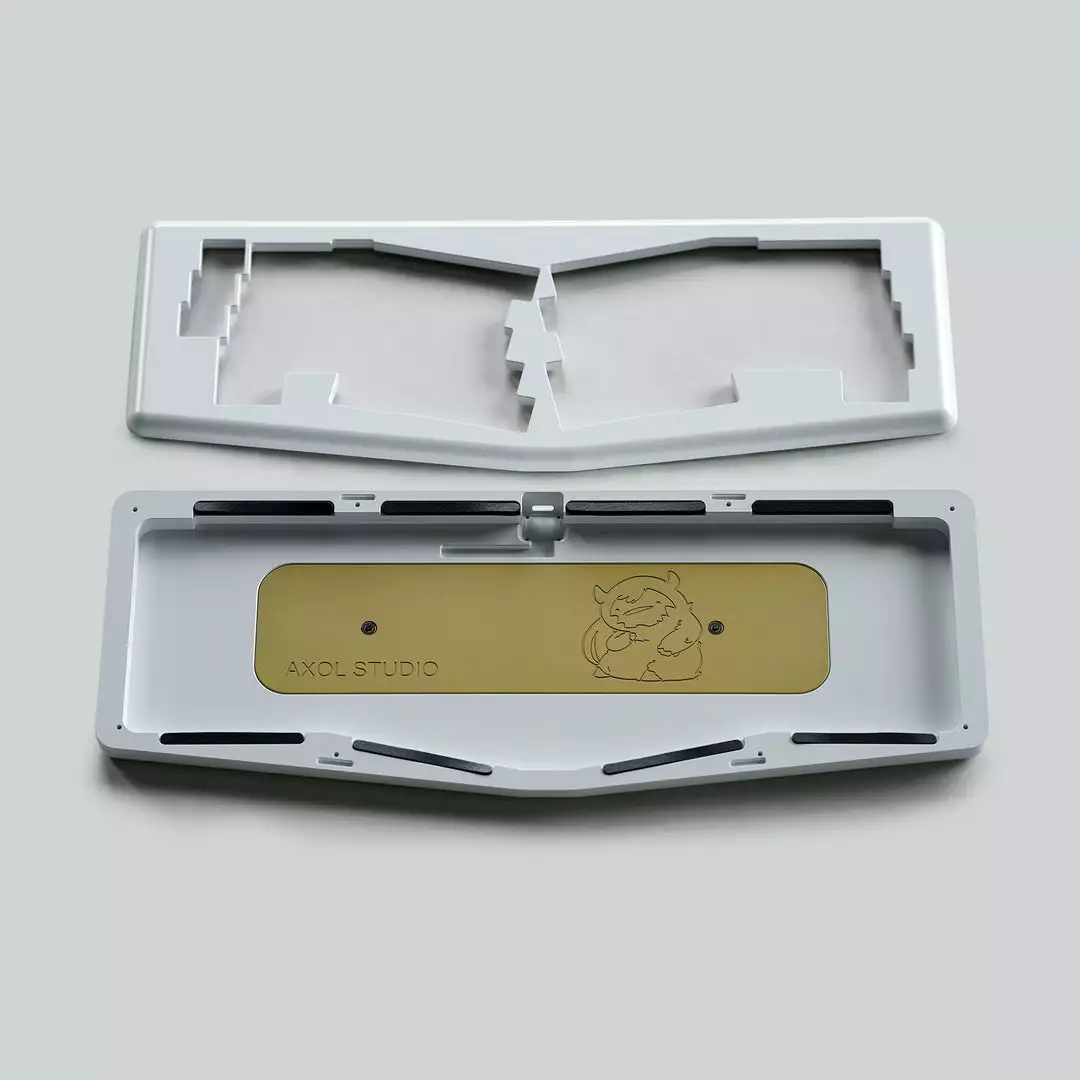

1x Top case
1x Bottom case
1x Weight bar
1x Plate
1x Main PCB
1x USB daughterboard PCB
3x Weight screws (M3 x 4mm)
10x Case Screws (M2 x 5mm)
6x Daughterboard Screws (M2 x3mm)
1x Gasket Sheet
1x JST cable for daughterboard to main PCB connection

Firmware

Flash manual
Hot-swap: alicergb via.hex alicergb.json
AxolStudio Yeti Build Guide
SWITCHES *70

Notes

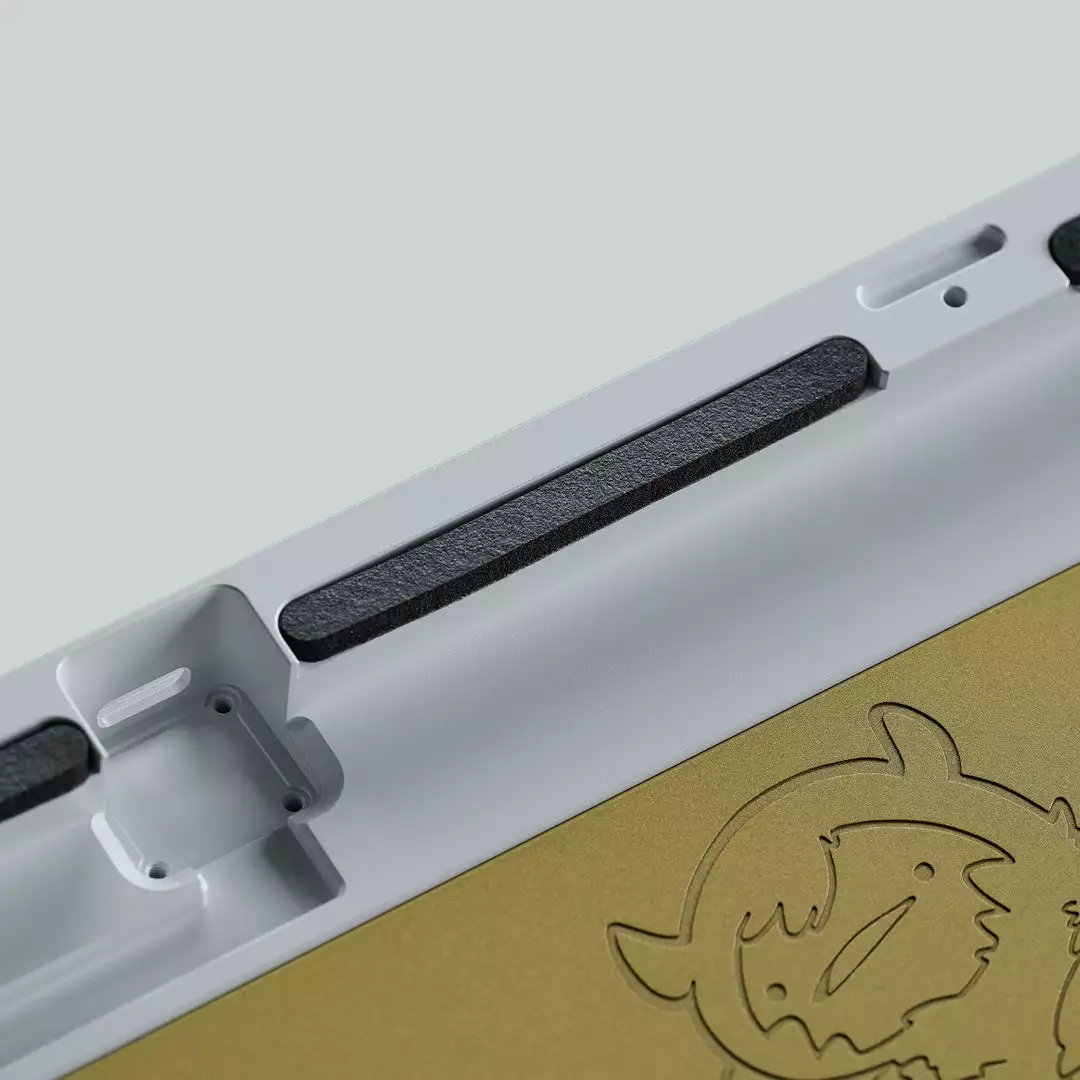

Gaskets can not be installed in plate, they are installed in top-bottom case (Link)
There might be little difference between the renders and real stuff. We do not accept the returns and refunds caused by the slight difference in color.
Do not overtighten screws. Stop screwing the screw in when the screw stops. For those with Polycarbonate versions, overtightening the screws may result in stripped screws or cracked cases. The vendor and the designer are not liable for any damages as a result of overtightening screws.
Be careful and check that your screwdrivers used are the right size and can fit in the holes for the case without touching the sides. Some screwdrivers may be too large and result in scratching or damaging the case.

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-b87c3478-5b33-47db-92f5-020343771184’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-03ce405c-4405-45e3-950e-7400febb44a9’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-f794bf5a-5682-4413-9012-5abd44be162c’ })

window.SHOGUN_SLIDERS = window.SHOGUN_SLIDERS || new Array();
window.SHOGUN_SLIDERS.push({
id: ‘#slider-s-fdb4e2d2-c4c1-4515-af27-5f2513a7a54a’,
intervalTime: 5,
autoplay: false,
pauseOnHover: false,
interval: null
})

Detailed Pictures

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-b0b4ff75-46ab-4c81-baad-e9cb2e1a4bdd’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-8d63ee2a-8463-4992-b896-23944022b4e3’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-2a5451c6-e398-4623-91f5-414b2ca644b1’ })

window.SHOGUN_SLIDERS = window.SHOGUN_SLIDERS || new Array();
window.SHOGUN_SLIDERS.push({
id: ‘#slider-s-54b4bd0e-823f-41bb-a4b5-b4c321c0d052’,
intervalTime: 5,
autoplay: false,
pauseOnHover: false,
interval: null
})

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-fb0fe6df-64b1-4f41-899f-47b946eb6bd0’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-fa3a1729-475a-4f0b-b64d-ad43580a47d9’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-3c75f12f-b8aa-419d-9fa4-8eeba3fd77ae’ })

window.SHOGUN_SLIDERS = window.SHOGUN_SLIDERS || new Array();
window.SHOGUN_SLIDERS.push({
id: ‘#slider-s-aaa0f638-71bb-45e8-b832-9d278f99dc83’,
intervalTime: 5,
autoplay: false,
pauseOnHover: false,
interval: null
})

Layout

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-075923ee-a731-47c1-81ca-97ea4eba1ad6’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-265d49d7-a4a6-4c42-b1de-77725c593c0b’ })

Case	E-white, E-black, Polycarbonate Clear, Polycarbonate Sapphire Blue, Polycarbonate Amethyst Purple, Polycarbonate Morganite Pink
PCB	Hot swap PCB
Plate	PC plate
